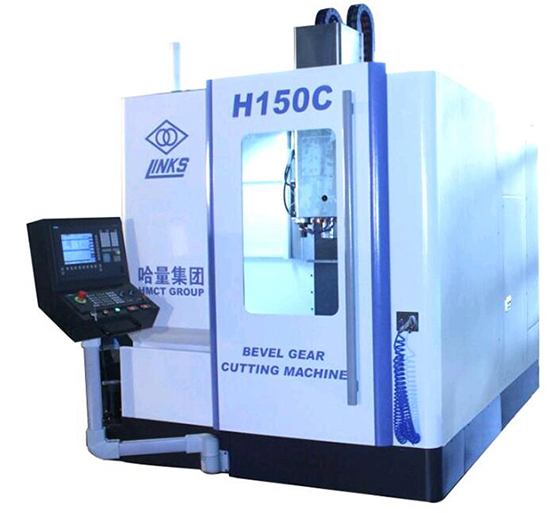

• H150C CNC Spiral Bevel Gear Cutting Machine
  • Source:Changsha links-ks   Release time:2020-03-22 20:24:36

  • Product characteristics

      -H310C CNC Spiral Bevel Cutting Machine is a six-axis five-linkage CNC gear milling machine
      - Face milling method can be used to process Gleason tooth circular bevel gear.
      - The machine can process  high reduced-ratio hypoid gears and end face arc tooth couplings
      - It can not only be used for dry cutting with new structure cutter head, but also for using cooling oil supply device to achieve wet cutting with traditional cutter head.
      -  Tool spindle and workpiece spindle adopt Direct Drive Technology
      - The machine adopt Siemens s840dsl numerical Control system
      - The machine can achieve automatic tool alignment and automatic allowance allocation

    Technical parameter


    H150C Face milling method
    Maximum workpiece diameter(mm) 150
    Processing modulus range 0.7~4
    Maximum  tooth depth(mm) 10
    Maximum tooth surface width(mm) 30
    Range of tooth numbers 1~200
    Machining tooth number 1:200
    Working accuracy(DIN) 5
    Cutter plate size 1"~4"
    Cutter shaft speed(rpm) 3500
    Large end diameter of workpiece shaft(mm) ¢44.399
    Workpiece shaft inner hole taper 1:19.002
    Workpiece shaft through hole length(mm) 150
    Workpiece shaft speed(rpm) 0~80
    Working table rotation angle(° -120~120
    Working table swing speed(rpm) 0~32
    Machine Dimension
    (L*W*H,mm)
    2300*3000*2700
    Machine Weight(kg) 4500
    Floor space(L*W,mm) 3500*4000
